World's Fastest Trike

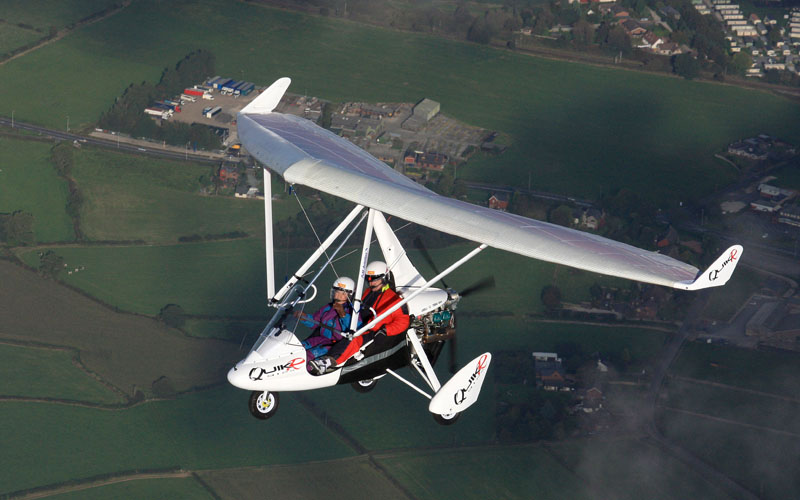

The world's fastest flex wing, current world record holder in a straight line. The QuikR is a no nonsense high speed touring aircraft ideal for eating up the miles. With a strut braced 11.43 sqm wing with unique self-rig internal washout rods, the QuikR expands the performance of the original Quik with a hands off trim speed of 55-97mph, depending upon configuration. One look at the wing and you know it has the performance, now fitted with STARS for more precise slow speed handling and roll trim for fine-tunning in flight.
QuikR - Ultimate performance!
Comfortable seating available as S-LSA or E-LSA.

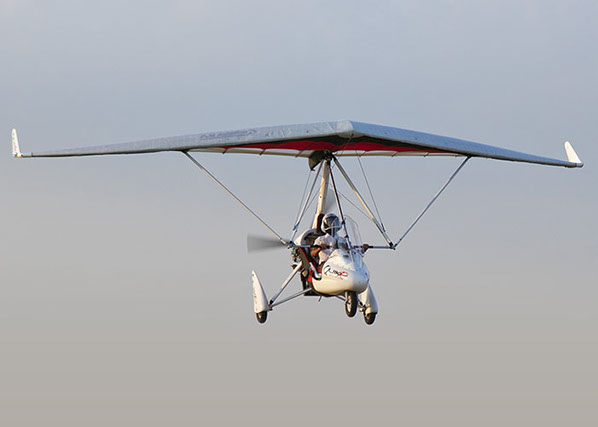

QUIKR Strutted Wing (cruise 55-100mph)
The P&M QUIKR wing is a joy to fly. There is no other wing that comes close to matching the performance and the speed range of the QUIKR. It is no wonder this Weight-Shift aircraft have won every competition that it has been involved in. Not by just taking first place, but sweeping the podium with all the top places. The pilots flying these hight performance Weight-Shift are some of the best in the world, it's no little secret why they choose the QUIKR for he task.
The P&M QUIK chassis and 11.43sqm QUIKR wing combination has a STALL speed of only 40mph @ MTOW (38mph if flying solo) and a climb rate of 1,150 ft/min with a rate of descent of only 500 fpm at MTOW. It provides for short landings and take-off, and yet capable of cruising at 100mph. The 55-100mph speed range is unmatched in the industry, and a Vne of 120mph. If you are going places in a trike, this trike will get you there faster than any other!
The latest model QUIKR wing has incorporates all 3 P&M in-flight trim systems: flight speed electric trim, enhanced roll control STARS trim and roll adjustment trim. The latest QUIKR models also include special vented under-surface that help improve performance at all speed ranges.
The QUIKR wing is easy to break down and setup, but it can also be folded over the trike for easier transportation and storage. This is a well tested and extremely popular wing that is designed and built by one of the top Flex-Wing manufacturer in the world, P&M Aviation LTD, UK.
QUIKR Strutted Wing

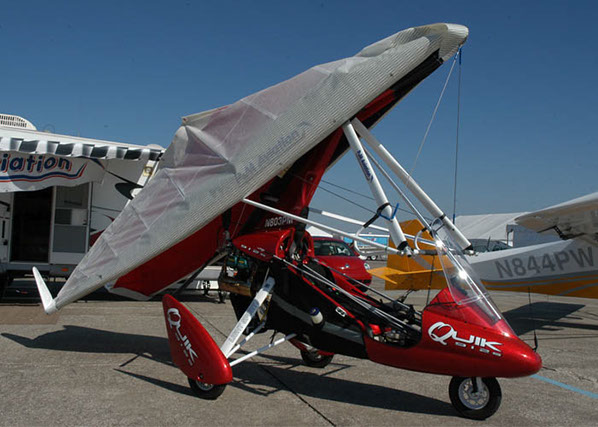

Folding the wing over the trike is possible with our strutted wings (QUIKR and GTR). Folding the wing over the trike does not take long and with some practice you may be able to have it done in 10-15min. Basically remove upper and lower center battens, release the tension, and let the wing fold backwards. The wing can also be folded with the wing mast lowered which will greatly reduce overall height for transportation.
In-flight Roll Trim
Efficient roll trim system allows you to do minor roll adjustments in-flight.
STARS Trim System
The GTR and QUIKR wing have a patented roll augmentation system called STARS (stability and roll system).
Flexwings generally have light handling at high speed but become progressively more stable and heavier to
maneuver at lower speeds. The Stars system works with the trimmer so that the more nose-up (slow) trim is
applied, the more the STARS system works to increase roll response. If you are interested in more detailed information on how the system is setup and works please read the Tech Topic: How the Electric Trim and STARS system works in our Winter 2015 News Letter (Page 6). to View the 2015 News Letter in .PDF

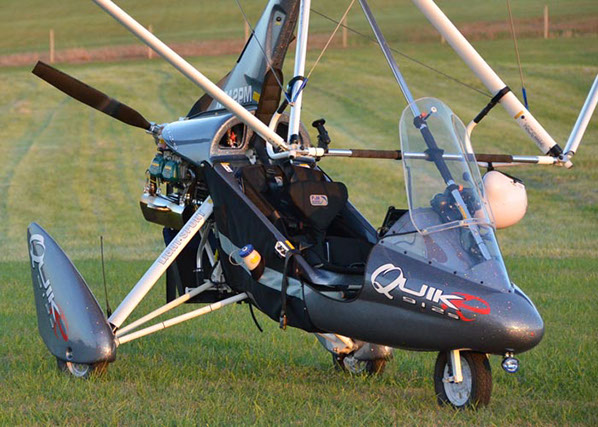

Fiberglass full pod and light weight side skirt
Light weight fiberglass pod and instrument panel. Side skirt includes 2 zipper documents pockets. Large fiberglass wheel spats for better tracking at speed. Also included is the easy to remove engine covers and aerodynamic mast cover. Several beautiful colors to choose from with matching wing color combinations.
Explorer Package standard
The explorer package is standard and includes larger tundra tires and wheel spats as well as improved rear disk brake system and optional front disk brakes. Awesome off-field performance and great looks.
Conveniently located hand throttle and choke levers
Hand throttle and choke levers are conveniently located next to the pilot and at easy access for the flight instructor. The hand throttle allows for very fine adjustments in flight speed when cruising at altitude. The foot throttle works in conjunction with the hand throttle. The speed trim button is also located next to the hand throttle for easy one-hand adjustments of cruise speed and trim.
Electric Speed-Trim System
Your QUIK chassis comes standard with an electric speed trim system that is compatible with all P&M Aviation wings (QUIK, QUIKR, GT450 and GTR wings). The popular proven electric trim system works very well. It is conveniently located at easy reach and next to the hand throttle control. It allows for complete speed trim range as well as very precise, small speed adjustments. Pull the lever up to slow down, push the lever down to speed up. It is that easy.
17 Gallon Fuel Tank
The 17 gallon polyethelene fuel tank is conveniently mounted under the seats. Provides easy access to refill and best balance the weight of the fuel. Fuel-flow meter available with the MGL Extreme EMS system.
The cockpit is spacious and comfortable. Entry and exit is easier than ever, as you can step anywhere without worries. The carbon fiber body will support your weight anywhere you step in the cockpit. The dash is specious allowing ample room for your iPad for navigation. Both seating and foot rests are adjustable to accommodate pilot and passenger comfort. The seating is plush and supportive. Seat restraints are easily adjusted. Flight controls are placed for ease of use and optimal visibility.
Large Touring Windscreen
A two part large touring windscreen is included. Easy to remove with snap-locks also includes a nice padded cover for protection during transport. The windscreen has been designed with edge deflectors to channel the wind efficiently channel the wind stream around the cockpit area to keep pilot and passenger protected from the wind at speed.
Gas Strut Assist
The QUIK chassis comes standard with a gas strut assist to raise/lower the wing/mast. Also, with the strutted wings you have the option to quickly fold the wing on top of the trike for storage or transport.
Flight Instrument Layout
The aircraft comes standard with all analog instruments including ASI, VSI, ALT, Compass, analog engine monitoring, electric trim indicator light, charging system light, on/off key and start button. Optional are Enigma EFIS, Enigma Extreme EMS, Trig in-dash Radio and Transponder, breakers and on/off switches, and more.
The QUIK chassis has a place under the seat for the BRS 1050 Softpack that provides good protection from wind and the elements. The skirt comes with cutoff for the BRS deploy and the BRS rocket. The wing also has pockets for routing the BRS lines.

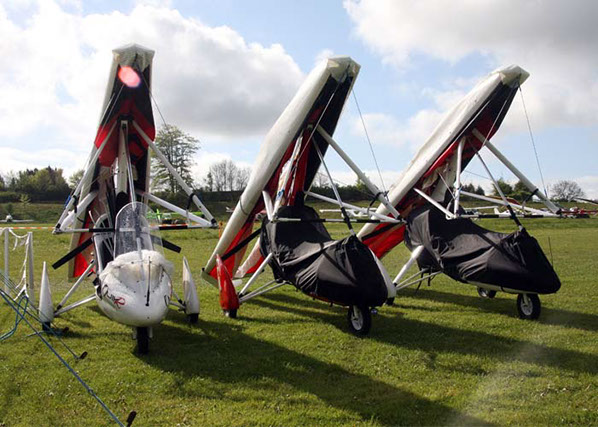

Heavy duty trike/engine/windscreen covers and 3-blade prop covers
Your aircraft includes a heavy duty trike/engine/windscreen cover that protects your investment during storage, transport or from the elements. Also blade covers are included with the standard 3-blade Warp Drive propeller. The covers fit tight around your trike and engine and provides straps and clips to keep it in place. It all folds into a small bag easy to carry with you in longer trips.
Handy removable storage bag
Your aircraft includes a very handy removable storage bag that clips under the pilot seat. The bag can hold quite a bit and also include two zippered handy pockets.
This is just a part of the team that comes "bundled" with your P&M Aircraft
Your aircraft comes "bundled" with a great team of designers, builders, engineers and support. We want to make sure you are safe, and your investment in your aircraft well supported for years to come.
QUIKR Strutted Wing
Fold Wing Over Trike
Speed Trim System
17 Gallon Fuel Tank
Gas Strut Assist

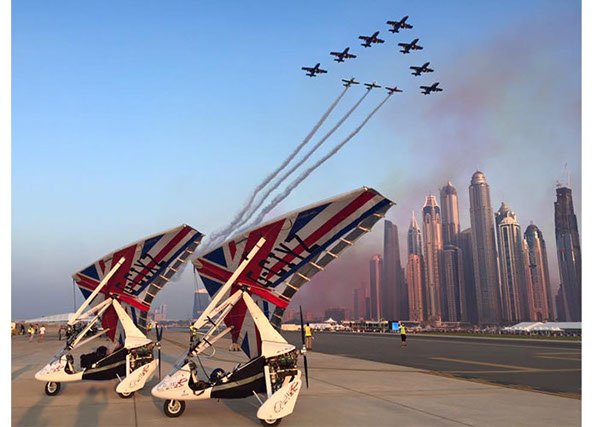

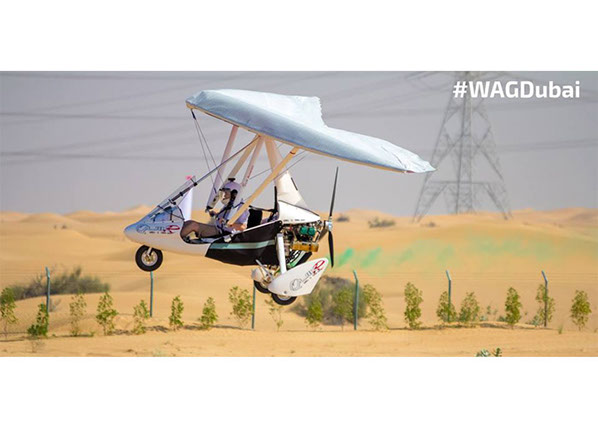

Team GB dominated the World Air Games microlight competition in Dubai, with a clean sweep of the medals. The FAI World Air Games which took place In Dubai 1st – 12th December 2015 used P&M Aviation QuikR flexwing aircraft. David Broom was crowned World Champion, with Paul Dewhurst taking silver, Rees Keene bronze and Mark Fowler fourth place.
The first nine places were all taken by P&M QuikR's.
A great achievement!
